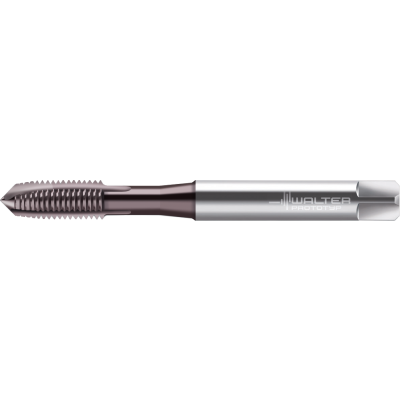

HSS-E PM machine taps

EP2021302-M10

EAN-code: 4042446245689
P-Tr-Through-Holes-Icon Tr-Tol-6HX Tr-Profil-M-DIN-Icon
Tr-3-5xDN-Icon-inch TR-400-150HB-Icon-inch Tr-1350-500-Nmm2-Icon Tr-3-5xDN-Icon Tr-Anschnitt-B3-5-5-Icon
For long-chipping materials
P
M
K
N
S
H
O
VAT 0% 87,80 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Connection diameter
d1
10 mm
Functional length
l1
1 mm
Driving square length
l9
11 mm
usable length
l3
39 mm
Number of grooves
N
3 kpl
Tool designation
Designation
EP2021302-M10
Thread size
DN
M 10
Thread length
Lc
2 mm
Thread pitch
P
1,5 mm
Clamping width
8 mm
Compatible products
Adaptors
W A A331 P 01
A331.0
Quick-change collet
Show variations
W A C340 P 01
C340-ER32
DIN 6499 ER tapping collets
Show variations
W-A-C340-P-01
C340-ER25
DIN 6499 ER tapping collets
Show variations
W-A-C340-P-01
C340-ER20
DIN 6499 ER tapping collets
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER collet chucks
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
W A AK300 SK P 01
AK300.S
DIN 69871 A ER collet chuck
Show variations
W A AK300 BT P 01
AK300.BT
MAS-BT JIS B 6339 ER collet chuck
Show variations
W A AK300M HSK P 01
AK300.7
DIN 69893-1 A ER collet chuck
Show variations
P TR PROTOFLEXC S9018351 P 01
AB035-W
Synchronous thread cutting adaptor
Show variations
W A AB035 S40 ER20 120 P 01
AB035-S
Synchronous thread cutting adaptor
Show variations
W A AB035 J40 ER20 110 P 01
AB035-J
Synchronous thread cutting adaptor
Show variations
W A AB035 H63 ER20 108 P 01
AB035-H
Synchronous thread cutting adaptor
Show variations
W A AB035 C6 ER20 105 P 01
AB035-C
Synchronous thread cutting adaptor
Show variations
