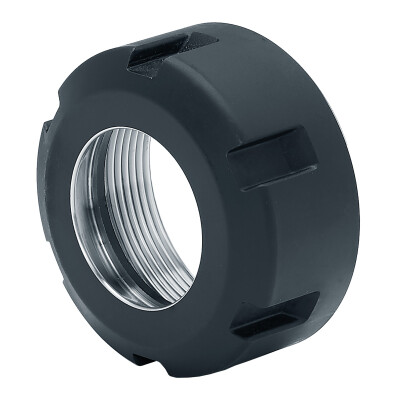

Clamping nut, ISO 15488 (DIN 6499)
110.02.10
EAN-code: 4250001003050
ER, balanced
ISO 15488 (DIN 6499)
ISO 15488 (DIN 6499)
VAT 0%
23,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
All collets with outside form DIN 6499 (ISO 15488) can be clamped.
Technical details
Description
Symbol
Value
Type
426E, ER 16
Version
ISO 15488
Clamping Ø, nominal, workpc. side
DCONWS
1 - 10
Diameter lock nut
DLN
32
Torque maximum
TQX
50
Connection thread nominal size
THSZMS
M22 × 1,5
Lock nut height
HLN
17.5
