Products Adaptors Chucks and holders, Walter tools HSK DIN69893-1 Shell end milling cutter arbor AD, vibration damped HSK adaptor – Vibration-damped AC001-H AC001-H100-B32-330

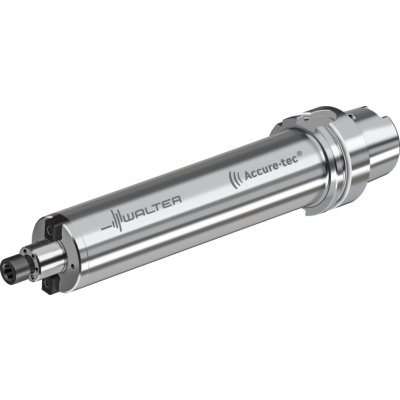

Walter Tools AC001-H100-B32-330
HSK adaptor – Vibration-damped

EAN-code: 0603510851
For milling tools with parallel bore according to DIN 138 With preset vibration damping
VAT 0% 6027,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
W A AC001 HSK D 01
Enlarge
Description Symbol Value
Body diameter
d12
78 mm
Functional length
l4
330 mm
Shank length
l19
24 mm
Tool designation
Designation
AC001-H100-B32-330
Weight
14,42 kg
Connection size code
d1
HSK-A100
Connection size code
d11
32
