DIN 69871 hydraulic expansion chuck
AK182.S50.081.32
EAN-code: 0697845851
ISO 7388-1
For tools with shank in accordance with DIN 1835 Form A
VAT 0%
526,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
Description

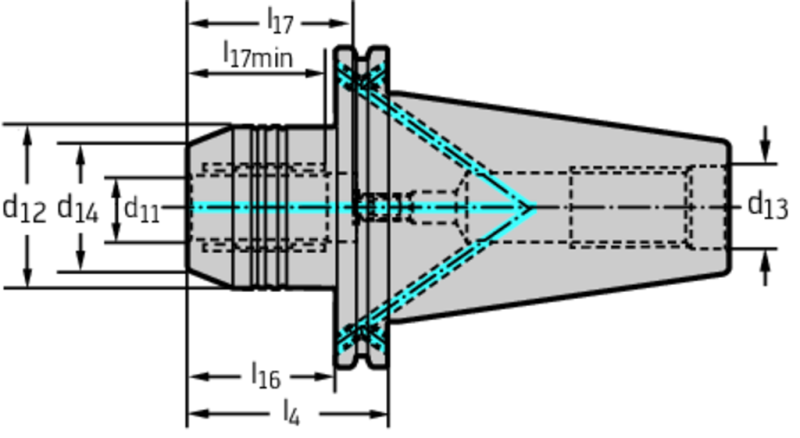

Symbol
Value
Mounting diameter
d14
58,5 mm
Weight
WT
4,1 kg
Tool designation
Designation
AK182.S50.081.32
Functional length
l4
81 mm
Connection size code
d1
SK50
Connection size code
d11
32
Useable length
l16
62 mm
Pull stud, thread size
d13
M24
Body diameter
d12
72 mm
Clamping diameter depth
l17
61 mm
Min. clamping diameter depth
l17min
51 mm
Connection diameter
d14
58,5 mm
