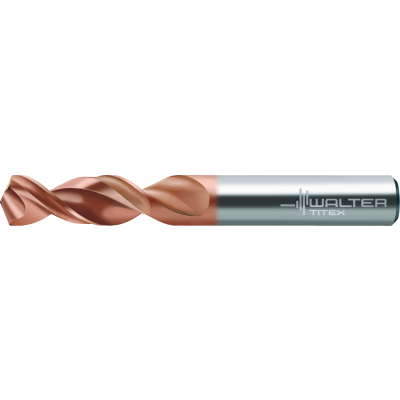

HSS-E twist drills, extra short

A1149XPL-4

EAN-code: 4031132264417
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D--3xDc-Icon D-DIN1897-Icon D-K-extern-Icon D-Spitzenw-130-Icon
P
M
K
N
S
H
O
VAT 0% 15,63 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
T-DR-A1149-Z-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
4 mm
Shank diameter
d1
4 mm
Flute length
l2
22 mm
Cutting edge length
Lc
15 mm
Overall length
l1
55 mm
Tool designation
Designation
A1149XPL-4
