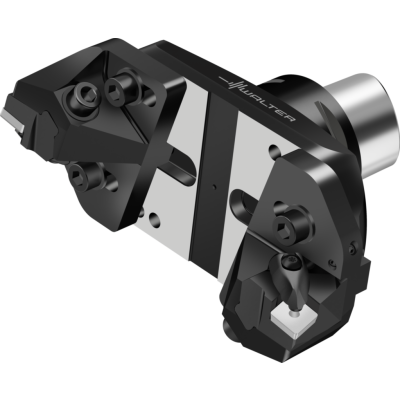

Double-edged boring tool

B5460-198-250-C8-CN19 NEW 2022

EAN-code: 4063464330898
D-countersink-rough-arrow-Icon D-rough-surface-Icon
D-Dc148-620-Icon D-M-Z2-Icon Kappa-90-Icon
Basic body/bridge can also be used with B5120 Symmetrical, asymmetrical and axial-radial offset rough boring (ARS)
P
M
K
N
S
H
O
VAT 0% 1817,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Body diameter
Dc
198
Connection diameter
d1
C8 mm
Weight
WT
8,2 kg
Possible indexable inserts
Type
CN .. 1906 ..
Tool designation
Designation
B5460-198-250-C8-CN19
Functional length
l4
122 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
W-T-CNMG-RP7-TTG3-P-01
CNMG-RP7
Negative rhombic 80°
Show variations
W-T-CNMG-RP5-TTG3-P-01
CNMG-RP5
Negative rhombic 80°
Show variations
W-T-CNMG-RM5-TTG3-P-01
CNMG-RM5
Negative rhombic 80°
Show variations
W T CNMG NRT SILVER P 01
CNMG-NRT
Negative rhombic 80°
Show variations
W T CNMG NRS SILVER P 01
CNMG-NRS
Negative rhombic 80°
Show variations
W-T-CNMG-MS3-TTG3-P-01
CNMG-MS3
Negative rhombic 80°
Show variations
W T CNMG MK5 SILVER P 01
CNMG-MK5
Negative rhombic 80°
Show variations
W T CNMA RK7 SILVER P 01
CNMA-RK7
Negative rhombic 80°
Show variations
W T CNMA RK5 SILVER P 01
CNMA-RK5
Negative rhombic 80°
Show variations
AB584-CAPTO-P-01
AB584-HSK-MASTER
HSK DIN 69893-1 A master
Show variations
W A 2090 CAPTO P 01
R/LC2090
Clamping units
Show variations
W A 391 01 CAPTO P 01
391.01-CAPTO
Extension
Show variations
W-A-391-01-CAPTO-P-01
391.01-CAPTO-KURZ
Extension
Show variations
W A C6 390B 58 50040 P 01
390B.58/55-CAPTO
MAS-BT JIS B 6339 AD/B master
Show variations
W-A-C6-390B-540-50050A-P-01
390.540-CAPTO-A
DIN 69871 AD/B master
Show variations
W A C6 390B 140 50030 P 01
390B.140-CAPTO
DIN 69871 AD/B master
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
EB726 CN19 GOLD P 01
EB700-RB-CAR-CN
Boring XT cartridge CN.. indexable insert
Show variations
EB724 P 01
EB700-RB-SLIDE
Boring XT - Cartridge slide
Show variations
B5120 198 000 C8 B P 01
B5120-C-GK-1
Precision boring tool – basic body
Show variations
