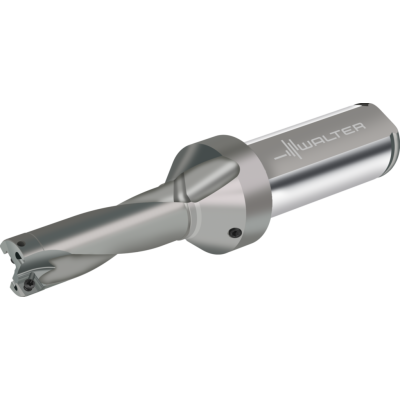

Indexable insert drills
D4120-03-14.50F20-P41
EAN-code: 0818156766
P
M
K
N
S
H
O
VAT 0%
411,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Video
Appendices

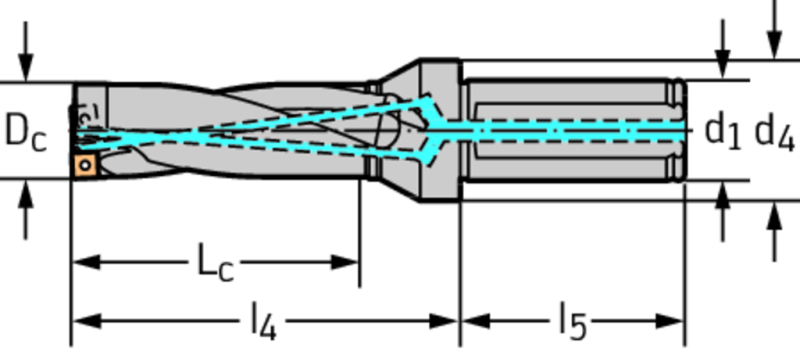

Technical details
Description
Symbol
Value
Weight
WT
0,2 kg
Number of indexable inserts
No. of inserts
1 PCE
Cutting edge diameter
Dc
14,5 mm
Connection diameter
d1
20 mm
Flange diameter
d4
25 mm
Maximum projection length
l4
63,5 mm
Shank length
l5
5 mm
Cutting edge length
Lc
43,5 mm
Tool designation
Designation
D4120-03-14.50F20-P41
Possible indexable inserts
Type
P484 . P-1R- ..
Possible indexable inserts
Type
P484 . C-1R- ..
