Products Cutting tools Holemaking Solid drilling Solid carbide drills Drills without internal cooling 5xDc DB130 Advance DB130-05-01.000U0-WJ30UU

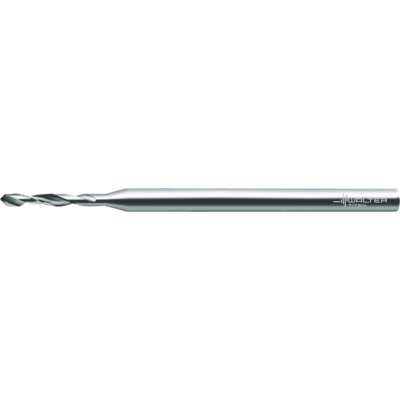

Solid carbide micro twist drills

DB130-05-01.000U0-WJ30UU

EAN-code: 4031132399621
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-5xDc-Icon D-DIN1899-Icon D-K-extern-Icon D-Spitzenw-118-Icon
P
M
K
N
S
H
O
VAT 0% 15,34 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Appendices
Technical details
T DR DB130 05 0050 U0 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
1 mm
Shank diameter
d1
1,5 mm
Flute length
l2
6,8 mm
Cutting edge length
Lc
5 mm
Overall length
l1
25 mm
Tool designation
Designation
DB130-05-01.000U0-WJ30UU
Compatible products
Adaptors
W-A-AK300T-P-01
AK300.T-IK
ER collet chucks
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER25
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER20
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER16
DIN 6499 ER collets
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER collet chucks
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
W A A305 P 01
A305.0
DIN 1835 B ER collet chuck
Show variations
