Products Cutting tools Holemaking Solid drilling Solid carbide drills With internal cooling 5xDc DB133 Supreme 4031132426150

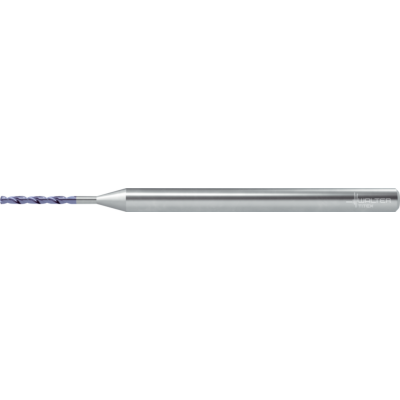

Solid carbide micro drills with coolant-through

DB133-05-00.794A1-WJ30EL NEW 2019

EAN-code: 4031132426150
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-5xDc-Icon D-IK-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 102,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T-DR-DB133-05-A1-D-01
Enlarge
Description Symbol Value
Flute length
l2
0,276 inch
Cutting edge diameter
Dc Inch/Nr
1/32"
Shank diameter
d1
0,118 inch
Cutting edge diameter
Dc
0,031 inch
Overall length
l1
1,89 inch
Cutting edge length
Lc
0,228 inch
Shank length
l5
1,339 inch
Tool designation
Designation
DB133-05-00.794A1-WJ30EL
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
