Products Cutting tools Holemaking Solid drilling Solid carbide drills With internal cooling Pilot drills Solid carbide drill 180° DC118 DC118-02-14.000A1-WJ30ET

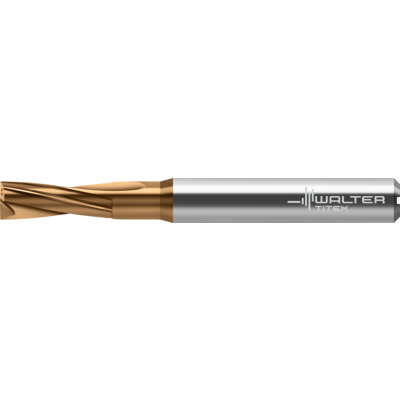

Solid carbide pilot drill

DC118-02-14.000A1-WJ30ET NEW 2022

EAN-code: 4063464352487
D-drilling-convex-Icon D-drilling-cross-hole-Icon D-drilling-inclination-Icon D-drilling-thru-hole-all-Icon D-pilot-drilling-180-Icon
D-2xDc-Icon D-IK-Icon D-Spitzenw-180-Icon
Special diameter tolerance for XD technology
P
M
K
N
S
H
O
VAT 0% 310,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W DR DC118 02 A1 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
14 mm
Shank diameter
d1
14 mm
Flute length
l2
49 mm
Shank length
l5
52 mm
Drilling depth
Lc
34,7 mm
Overall length
l1
107 mm
Tool designation
Designation
DC118-02-14.000A1-WJ30ET
