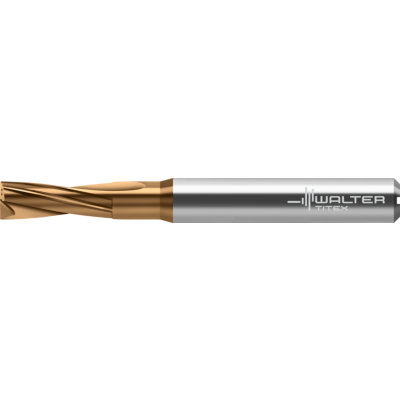

Solid carbide pilot drill

DC118-02-20.000A1-WJ30ET NEW 2022

EAN-code: 4063464352579
D-drilling-convex-Icon D-drilling-cross-hole-Icon D-drilling-inclination-Icon D-drilling-thru-hole-all-Icon D-pilot-drilling-180-Icon
D-2xDc-Icon D-IK-Icon D-Spitzenw-180-Icon
Special diameter tolerance for XD technology
P
M
K
N
S
H
O
VAT 0% 620,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W DR DC118 02 A1 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
20 mm
Shank diameter
d1
20 mm
Flute length
l2
70 mm
Shank length
l5
55 mm
Drilling depth
Lc
51,9 mm
Overall length
l1
131 mm
Tool designation
Designation
DC118-02-20.000A1-WJ30ET
Compatible products
Adaptors
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB025-J-P-01
AB025-J
MAS-BT JIS B 6339 shrink-fit adaptor
Show variations
AB025-H-P-01
AB025-H
DIN 69893-1 A shrink-fit adaptor
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB025-S-P-01
AB025-S
DIN 69871 AD/B shrink-fit adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
