Products Cutting tools Holemaking Solid drilling Solid carbide drills Without internal cooling 3xDc DC150 Perform DC150-03-U0, DIN 6535 HA shank DC150-03-A0, ≥ 3mm 4031132364643

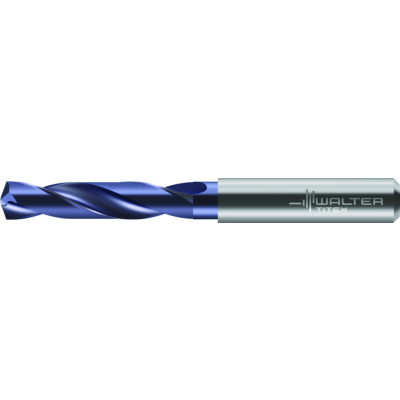

Solid carbide twist drills

DC150-03-03.969A0-WJ30RE

EAN-code: 4031132364643
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-3xDc-Icon D-DIN6537-K-Icon D-K-extern-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 45,50 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T DR DC150 A 0 D 01
Enlarge
Description Symbol Value
Shank length
l5
1,417 inch
Flute length
l2
0,945 inch
Cutting edge diameter
Dc Inch/Nr
5/32"
Shank diameter
d1
0,236 inch
Cutting edge diameter
Dc
0,156 inch
Overall length
l1
2,598 inch
Drilling depth
Lc
0,669 inch
Tool designation
Designation
DC150-03-03.969A0-WJ30RE
Compatible products
Adaptors
Products
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
W DI D4580 VIOLETT P 01
D4580-METRIC
Chamfering tool
Show variations
