Products Cutting tools Holemaking Solid drilling Solid carbide drills With internal cooling 5xD DC160 Advance DC160-05-A1, DIN 6535 HA shank 4031132406312

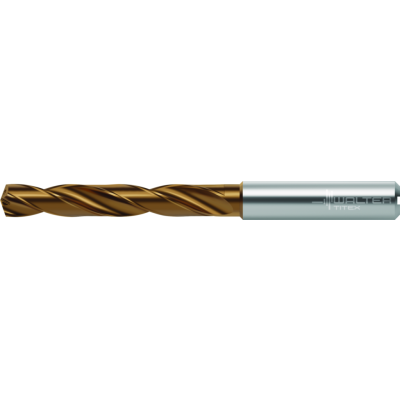

Solid carbide drills with coolant-through

DC160-05-03.100A1-WJ30ET

EAN-code: 4031132406312
D-drilling-blind-hole-solid-Icon D-drilling-cross-hole-Icon D-drilling-inclination-exit-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-5xDc-Icon D-DIN6537-L-Icon D-IK-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 114,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T DR DC160 A 1 D 01
Enlarge
Description Symbol Value
Shank length
l5
36 mm
Flute length
l2
28 mm
Shank diameter
d1
6 mm
Tool designation
Designation
DC160-05-03.100A1-WJ30ET
Cutting edge diameter
Dc
3,1 mm
Overall length
l1
66 mm
Drilling depth
Lc
23 mm
Compatible products
Adaptors
Products
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling FS...
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck AB019-H
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
W DI D4580 VIOLETT P 01
D4580-METRIC
Chamfering tool
Show variations
