Products Cutting tools Holemaking Solid drilling Solid carbide drills With internal cooling 5xDc DC180 Supreme DC180-05-16.000A1-WJ30EZ

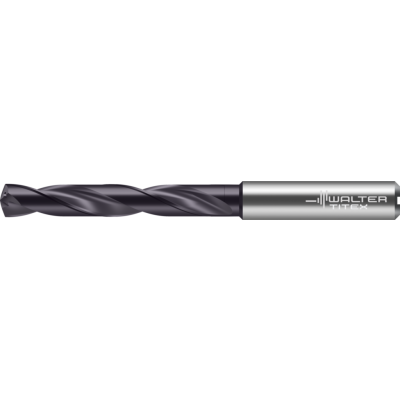

Solid carbide drills with coolant-through

DC180-05-16.000A1-WJ30EZ NEW 2023

EAN-code: 4063464882410
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-5xDc-Icon D-DIN6537-L-Icon D-IK-Icon D-Spitzenw-140-Icon Krato-tec-Icon
with innovative Krato·tec® multilayer coating
P
M
K
N
S
H
O
VAT 0% 450,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
T-DR-DC160-A-1-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
16 mm
Shank diameter
d1
16 mm
Flute length
l2
83 mm
Shank length
l5
48 mm
Drilling depth
Lc
63 mm
Overall length
l1
133 mm
Tool designation
Designation
DC180-05-16.000A1-WJ30EZ
Compatible products
Adaptors
Products
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB025-J-P-01
AB025-J
MAS-BT JIS B 6339 shrink-fit adaptor
Show variations
AB025-H-P-01
AB025-H
DIN 69893-1 A shrink-fit adaptor
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB025-S-P-01
AB025-S
DIN 69871 AD/B shrink-fit adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
W DI D4580 VIOLETT P 01
D4580-METRIC
Chamfering tool
Show variations
