Products Cutting tools Holemaking Solid drilling Solid carbide drills Without internal cooling Chamfer drills DC260-03-F0, Whistle Notch shank 4031132420578

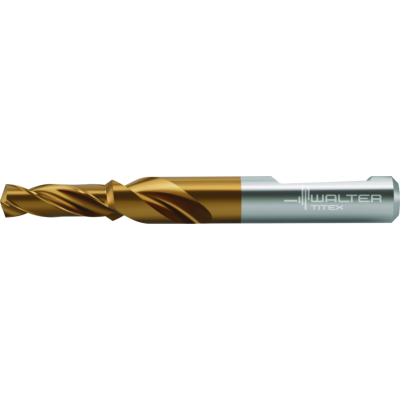

Solid carbide twist drills

DC260-03-08.500F0-WJ30ET

EAN-code: 4031132420578
D-chamferdrilling-blind-hole-Icon D-chamferdrilling-thru-hole-Icon D-chamferdrilling-thru-hole-stack-Icon
D-3xDc-Icon D-K-extern-Icon D-Spitzenw-140-Icon D-Stufenw-90-Icon
Step length in accordance with DIN 8378 For threaded core hole drilling
P
M
K
N
S
H
O
VAT 0% 208,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T DR DC260 03 F0 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
8,5 mm
Cutting edge diameter
d10
12 mm
Shank diameter
d1
12 mm
For threads
M 10
Flute length
l2
55 mm
Shank length
l5
45 mm
Overall length
l1
102 mm
Tool designation
Designation
DC260-03-08.500F0-WJ30ET
Step length
Lc
26 mm
