Products Cutting tools Turning Vibration-damped boring bars QuadFit exchangeable head, negative DN.. DDUNL 0560297912

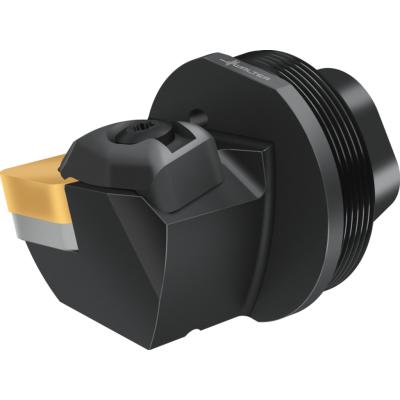

Replaceable head – rigid clamping

Q32-DDUNL-22032-15 NEW 2019

EAN-code: 0560297912
T-In-SDUC-Icon
T-WSP-DNMG-Icon T-WSP-DNMM-Icon
QuadFit For Accure·tec boring bars
VAT 0% 396,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-DDUNL-QUADFIT-IN-D-01
Enlarge
Description Symbol Value
Orthogonal rake angle
γ
-6 °
Possible indexable inserts
Type
DN .. 1506 ..
Minimum diameter
Dmin
4 mm
Insert seat size
15
Tool designation
Designation
Q32-DDUNL-22032-15
Projection length
l4
32 mm
Inclination angle
λs
-14 °
Functional width
f
21,9 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
DNGA-TM-4-WTZ-P-01
DNGA_TM-4
CBN – Negative rhombic 55°
Show variations
DNMM HU3 TTG2 P 01
DNMM-HU3
Negative rhombic 55°
Show variations
W T DNGA SMS CER CHAMP P 01
DNGA-SMS
Ceramic – Negative rhombic 55°
Show variations
W-T-DNMG-MW5-TTG3-WIPER-P-01
DNMG-MW5
Negative rhombic 55°
Show variations
W-T-DNMG-FW5-TTG3-WIPER-P-01
DNMG-FW5
Negative rhombic 55°
Show variations
W-T-DNMG-MU5-TTG3-P-01
DNMG-MU5
Negative rhombic 55°
Show variations
W-T-DNGA-TM-2-CBN-P-01
DNGA_TS-2
CBN – Negative rhombic 55°
Show variations
W T DNMG NRS SILVER P 01
DNMG-NRS
Negative rhombic 55°
Show variations
W-T-DNMG-RP5-TTG3-P-01
DNMG-RP5
Negative rhombic 55°
Show variations
W T DNMG RM5 SILVER P 01
DNMG-RM5
Negative rhombic 55°
Show variations
W-T-DNMG-MS3-TTG3-P-01
DNMG-MS3
Negative rhombic 55°
Show variations
W-T-DNMG-MP5-TTG3-P-01
DNMG-MP5
Negative rhombic 55°
Show variations
W-T-DNMG-MP3-TTG3-P-01
DNMG-MP3
Negative rhombic 55°
Show variations
DNMG-NM4-TTG2-P-01
DNMG-MM5
Negative rhombic 55°
Show variations
W T DNMG MK5 SILVER P 01
DNMG-MK5
Negative rhombic 55°
Show variations
W T DNMG FM5 SILVER P 01
DNMG-FM5
Negative rhombic 55°
Show variations
W-T-DNMG-FP5-TTG3-P-01
DNMG-FP5
Negative rhombic 55°
Show variations
W-T-DNGA-TM-M2-CBN-CHIPBR-P-01
DNGA_TM-M2
CBN – Negative rhombic 55°
Show variations
DNGA-TM-2-WTZ-P-01
DNGA_TM-2
CBN – Negative rhombic 55°
Show variations
W A A3000 HSK T P 01
A3000-HSK-T-QUADFIT-INNEN
HSK-T adaptor – vibration damped A3000-HSK-T
Show variations
W A A3000 CAPTO P 01
A3000-CAPTO-QUADFIT-INNEN
Walter Capto TM Adaptor – vibration damped A3000-C
Show variations
W A A3000 Z P 01
A3000-QUADFIT-INNEN-RUND
Cylindrical shank adaptor– vibration damped
Show variations
W A A3000 QUADFIT F P 01
A3000-QUADFIT-INNEN
Cylindrical shank adaptor– vibration damped
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
imageComingSoon big en US
Z_CLAMPS
Clamp
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
