Single-piece boring bar for precision boring

EB513

EAN-code: 0459964917
Kappa-93-Icon
P
M
K
N
S
H
O
VAT 0% 173,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product

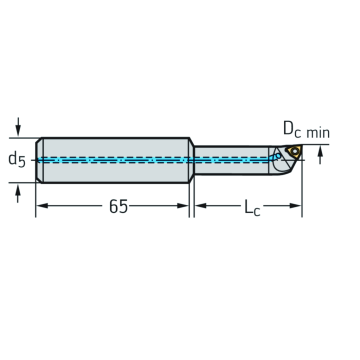

Technical details
Description Symbol Value
Connection diameter
d1
16 mm
Minimum cutting diameter
Dcmin
5,8 mm
Functional length
l12
85 mm
Overall length
l1
85 mm
Clamping length
l5
64 mm
Cutting edge length
Lc
21 mm
Tool designation
Designation
EB513
Possible indexable inserts
Type
WISO_WC0201_1
Functional width
f
2,9 mm
Compatible products
Adaptors
Accessories
Assembly parts
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER25
DIN 6499 ER collets
Show variations
W A 391 27 CAPTO P 01
391.27-CAPTO
Adaptor for drilling and reaming tools
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER collet chucks
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
W A AK300 SK P 01
AK300.S
DIN 69871 A ER collet chuck
Show variations
W A AK300 BT P 01
AK300.BT
MAS-BT JIS B 6339 ER collet chuck
Show variations
W A AK300M HSK P 01
AK300.7
DIN 69893-1 A ER collet chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
P TR PROTOFLEXC S9018351 P 01
AB035-W
Synchronous thread cutting adaptor
Show variations
W A AB035 S40 ER20 120 P 01
AB035-S
Synchronous thread cutting adaptor
Show variations
W A AB035 J40 ER20 110 P 01
AB035-J
Synchronous thread cutting adaptor
Show variations
W A AB035 H63 ER20 108 P 01
AB035-H
Synchronous thread cutting adaptor
Show variations
W A AB035 C6 ER20 105 P 01
AB035-C
Synchronous thread cutting adaptor
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
W A A2140 W32 R10 065 D 01
A2140-W
Boring bar adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
