Products Cutting tools Holemaking Boring and precision boring Boring tool components Precision Mini / Precision XT / Precision Digital Precision Mini Boring bars One-piece steelholder Dc=5,8-13,8mm WC.. 0959540917

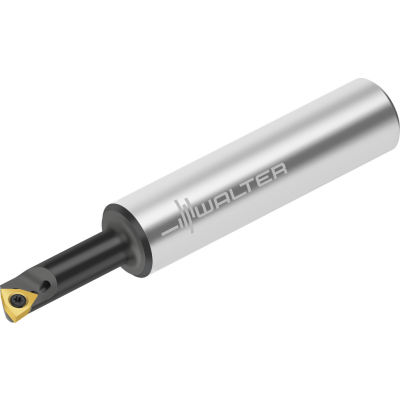

Single-piece boring bar for precision boring

EB553

EAN-code: 0959540917
Kappa-93-Icon
P
M
K
N
S
H
O
VAT 0% 188,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-DI-EB100-BBAR-2-TC-GOLD-D-02
Enlarge
Description Symbol Value
Connection diameter
d1
16 mm
Minimum cutting diameter
Dcmin
11,8 mm
Functional length
l12
101,5 mm
Overall length
l1
101,5 mm
Clamping length
l5
64 mm
Cutting edge length
Lc
37,5 mm
Tool designation
Designation
EB553
Possible indexable inserts
Type
TC .. 1102 ..
Functional width
f
5,9 mm
Compatible products
Products
Accessories
Assembly parts
TCGT-R-FX4-ANTHRA-P-01
TCGT-R-FX4
Positive triangular 60°
Show variations
TCGT-L-FX4-ANTHRA-P-01
TCGT-L-FX4
Positive triangular 60°
Show variations
TCMT-FW4-TTG2-WIPER-P-01
TCMT-FW4
Positive triangular 60°
Show variations
TCMT MP6 TTG2 P 01
TCMT-MP6
Positive triangular 60°
Show variations
TCGW-TM-3-WTZ-P-01
TCGW_TM-3
CBN – Positive triangular 60°
Show variations
W T TCGT FP2 CU P 01
TCGT-FP2
Positive triangular 60°
Show variations
TCGW-TS-3-CBN-P-MV-AD
TCGW_TS-3
CBN – Positive triangular 60°
Show variations
W T TCMW RK6 SILVER P 01
TCMW-RK6
Positive triangular 60°
Show variations
TCMT-FP6-TTG2-P-01
TCMT-FP6
Positive triangular 60°
Show variations
W T TCMT FM6 SILVER P 01
TCMT-FM6
Positive triangular 60°
Show variations
W T TCMT FK6 SILVER P 01
TCMT-FK6
Positive triangular 60°
Show variations
TCMT-RP4-TTG2-P-01
TCMT-RP4
Positive triangular 60°
Show variations
W T TCMT RM4 SILVER P 01
TCMT-RM4
Positive triangular 60°
Show variations
W T TCMT RK4 SILVER P 01
TCMT-RK4
Positive triangular 60°
Show variations
TCMT-MP4-TTG2-P-01
TCMT-MP4
Positive triangular 60°
Show variations
W T TCMT MM4 SILVER P 01
TCMT-MM4
Positive triangular 60°
Show variations
W T TCMT MK4 SILVER P 01
TCMT-MK4
Positive triangular 60°
Show variations
TCMT-FP4-TTG2-P-01
TCMT-FP4
Positive triangular 60°
Show variations
W T TCMT FM4 SILVER P 01
TCMT-FM4
Positive triangular 60°
Show variations
W T TCGW 9 PCD P 01
TCGW_FS-9
PCD – Positive triangular 60°
Show variations
W T TCGW 1 PCD P 01
TCGW_FS-1
PCD – Positive triangular 60°
Show variations
W-T-TCGT-MN2-ANTHRA-POL-P-02-1
TCGT-MN2
Positive triangular 60°
Show variations
W-T-TCGT-MM4-SILVER-P-01
TCGT-MM4
Positive triangular 60°
Show variations
TCGT-MP4-TTG2-P-01
TCGT-MP4
Positive triangular 60°
Show variations
W T TCGT MK4 SILVER P 01
TCGT-MK4
Positive triangular 60°
Show variations
W-T-TCGT-FN2-ANTHRA-POL-P-02-1
TCGT-FN2
Positive triangular 60°
Show variations
W T TCGT FM2 SILVER P 01
TCGT-FM2
Positive triangular 60°
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
