Products Cutting tools Holemaking Reaming HSS Machine reamers Through hole F1352HUN spacing 0,01 F1352HUN-10.28

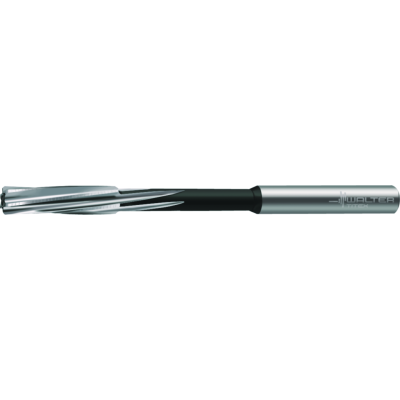

HSS machine reamers

F1352HUN-10.28

EAN-code: 4031132132587
D-reaming-thru-hole-Icon
D-DIN212-Icon D-Drallw-links-Icon
Walter standard up to dia. 3.75 mm with centring tips Diameter increment = 0.01 mm
P
M
K
N
S
H
O
VAT 0% 94,30 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
T-DR-F1352-Z-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
10,28 mm
Connection diameter
d1
10
Cutting edge length
Lc
38 mm
Shank length
l5
46 mm
Overall length
l1
133 mm
Tool designation
Designation
F1352HUN-10.28
Number of teeth
Z
6
