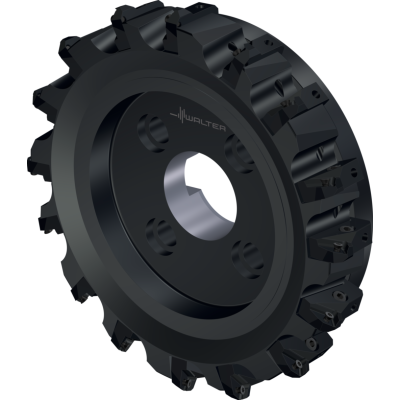

Products Cutting tools Milling Milling tools with indexable inserts Face milling cutters Positive indexable inserts M4003 and F2010, 45° F2010-SD12 F2010-B3-SD12, Dc= 160mm - 250mm 0918185725
Face milling cutters

F2010.B.250.Z16.06.R758M

EAN-code: 0918185725
M-face-milling-finishing-Icon M-face-milling-roughing-Icon
M-Anstellw-45-Icon M-Wiper-Icon M-WSP-pos-Icon
Adjustable runout 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 2734,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Appendices
Technical details
W MI F2010 B RO D 03
Enlarge
Description Symbol Value
Cutting edge length
Lc
6 mm
Body diameter
Dc
250
Connection diameter
d1
60 mm
Maximum cutting diameter
Da
264 mm
Functional length
l4
63 mm
Tool designation
Designation
F2010.B.250.Z16.06.R758M
Possible indexable inserts
Type
SD .. 1204AZN; SDHX1204AZR
Weight
WT
14,6 kg
Number of teeth
Z
16
Number of indexable inserts
No. of inserts
16 PCE
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI SDGT F57 UNBESCH P 01
SDET-F57
Positive square
Show variations
W MI SDMW AZN A57 TTG P 01
SDMX-A57 (M4000)
Positive square
Show variations
W MI SDMW A57 TTG P 01
SDMW-A57 (M4)
Positive square
Show variations
W MI SDMT AZN F57 TTG P 01
SDMX-F57 (M4000)
Positive square
Show variations
W MI SDMT AZN D57 TTG P 01
SDMX-D57 (M4000)
Positive square
Show variations
SDMT-F57-M4-TTGPVD-P-01
SDMT-F57 (M4)
Positive square
Show variations
SDMT-D57-M4-TTGPVD-P-01
SDMT-D57 (M4)
Positive square
Show variations
SDMT-D51-TTGPVD-P-01
SDMT-D51 (M4)
Positive square
Show variations
W MI SDHX AZR A88 ANTHRA P 01
SDHX-A88 (M4000)
Positive square
Show variations
W MI SDHT AZN G88 CU P 01
SDGX-G88 (M4000)
Positive square
Show variations
W MI SDHT G88 CU P 01
SDHT-G88 (M4)
Positive square
Show variations
W-MI-SDGT-AZN-G77-TTG-PVD-P-01
SDGX-G77 (M4000)
Positive square
Show variations
SDGT-AZN-F57-TTGPVD-P-01
SDGX-F57 (M4000)
Positive square
Show variations
W A A155 SK P 01
A155.S
DIN69871-A shell mill arbor
Show variations
W A A155 BT P 01
A155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A A155M HSK P 01
A155.7
DIN 69893-1 A shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
imageComingSoon big en US
Z_RING
Rings
Show variations
W MI F2010 FR759M TTG P 01
KASF2010-ANDERE
Cartridge for F2010
Show variations
