Shoulder milling cutters

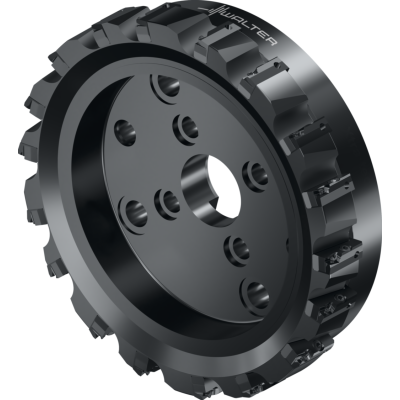

F2010.B.315.Z18.11.R764M NEW 2023

EAN-code: 4063465280864
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-helical-interpolation-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-WSP-pos-Icon
2 cutting edges per indexable insert Adjustable runout
P
M
K
N
S
H
O
VAT 0% 3636,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-MI-F2010-B-D-05
Enlarge
Description Symbol Value
Cutting edge length
Lc
11,7 mm
Cutting edge diameter
Dc
315 mm
Weight
WT
26,2 kg
Number of indexable inserts
No. of inserts
18 PCE
Possible indexable inserts
Type
BC .. 1204 .. R
Tool designation
Designation
F2010.B.315.Z18.11.R764M
Maximum projection length
l4
8 mm
Connection diameter
d1
60 mm
Number of teeth
Z
18
Compatible products
Products
Accessories
Assembly parts
BCGT-B85-PCD-P-01
BCGT-B85
Positive rhombic
Show variations
W MI BCHT K85 CU P 01
BCHT-K85
Positive rhombic
Show variations
BCMT-K55-TTGPVD-P-01
BCMT-K55
Positive rhombic
Show variations
BCMT-G55-TTGPVD-P-01
BCMT-G55
Positive rhombic
Show variations
W MI BCMT F55 TTG P 01
BCMT-F55
Positive rhombic
Show variations
BCGT-G55-TTGPVD-P-01
BCGT-G55
Positive rhombic
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
FR765M-TTGPVD-P-01
KASF2010-90
Cartridge for F2010
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W MI F2010 FR757M TTG P 01
KASF2010-90°
Cartridge for F2010
Show variations
