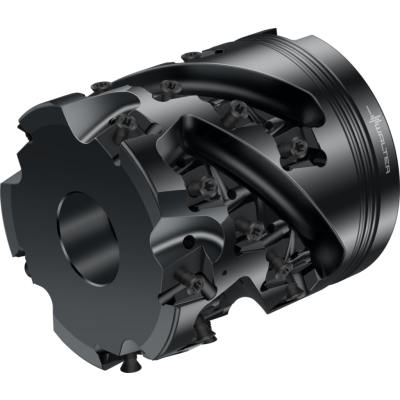

Helical milling cutters
F5138.B32.080.Z05.56
EAN-code: 0689342724
Full effective design
4 cutting edges per indexable insert, tangential arrangement
P
M
K
N
S
H
O
VAT 0%
1541,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
Description
Symbol
Value
Number of teeth
Z
5
Weight
WT
2,23 kg
Number of indexable inserts
No. of inserts
2 PCE
Number of indexable inserts
No. of inserts
5 PCE
Cutting edge diameter
Dc
8 mm
Connection diameter
d1
32 mm
Maximum projection length
l4
85 mm
Cutting edge length
Lc
56 mm
Tool designation
Designation
F5138.B32.080.Z05.56
Possible indexable inserts
Type
LNH . 1306 .. R
