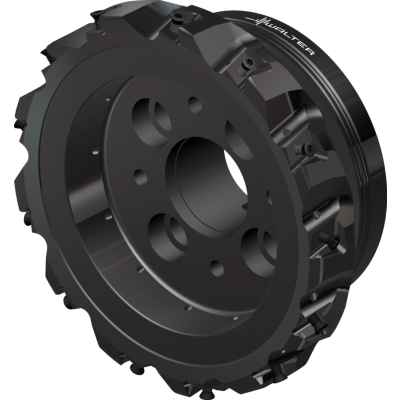

Shoulder milling cutters

F5141.B40.160.Z13.12

EAN-code: 0744810724
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon M-slot-milling-Icon
M-Anstellw-90-Icon M-Wiper-Icon M-WSP-neg-Icon
4 cutting edges per indexable insert Tangential arrangement of indexable inserts
P
M
K
N
S
H
O
VAT 0% 1322,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge length
Lc
12 mm
Number of indexable inserts
No. of inserts
13 PCE
Cutting edge diameter
Dc
16 mm
Maximum projection length
l4
63 mm
Tool designation
Designation
F5141.B40.160.Z13.12
Possible indexable inserts
Type
LNH . 1306 .. R
Weight
WT
5,38 kg
Number of teeth
Z
13
Compatible products
Products
Adaptors
Accessories
W MI LNMU L55T TTG P 01
LNMU-L55T
Tangential rhombic
Show variations
W MI LNHX L55T TIGER P 01
LNHX-L55T (4 SK)
Finishing inserts
Show variations
W MI LNHX PDR L55T P 01
LNHX-L55T
Finishing inserts
Show variations
W MI LNHU L65T SILVER P 01
LNHU-L65T
Tangential rhombic
Show variations
W MI LNHU ANN L55T CU P 01
LNHU-L85T
Tangential rhombic
Show variations
W MI LNHU L55T TTG P 01
LNHU-L55T
Tangential rhombic
Show variations
W A AC001 SK P 01
AC001-S
SK adaptor – Vibration-damped
Show variations
W A AC001 MAS BT P 01
AC001-J
MAS-BT adaptor – Vibration-damped
Show variations
W A AC001 HSK P 01
AC001-H
HSK adaptor – Vibration-damped
Show variations
W A AC001 CAPTO P 01
AC001-C
Walter CaptoTM adaptor – vibration damped
Show variations
W A AK155 HSK P 01
AK155.7
DIN 69893-1 A shell mill arbor
Show variations
W-EZ-Z-DISK-SET-WH-P-01
Z_DISK_SET
Seal
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
