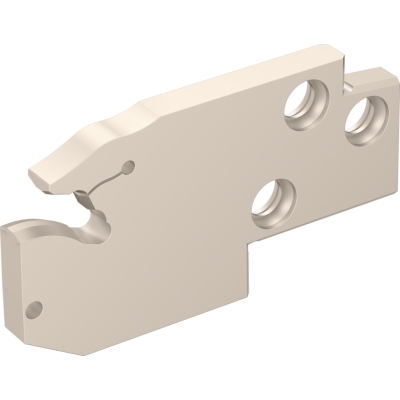

Grooving module – Radial grooving

G2632-E32N-8T45SX

EAN-code: 0795625937
T-Ex-Grooving-Icon T-Ex-Parting-Icon
T-WSP-SX-Icon
VAT 0% 110,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-G2632-20-32-N-SX -D-01
Enlarge
Description Symbol Value
Shank width
W
5,9 mm
Maximum cutting depth
Tmax
45 mm
Indexable insert width
s
8
Maximum grooving diameter
D2
90 mm
Overall length
l1
80 mm
Tool designation
Designation
G2632-E32N-8T45SX
Possible indexable inserts
Type
SX-8E8
Module size
E32
Body width
s1
6,8 mm
Compatible products
Products
Adaptors
Products
Accessories
SX-E-UF4-TTG-P-01
SX-E-UF4
Grooving and recessing – cutting inserts
Show variations
P
M
K
N
S
H
O
SX-E-CE4-TTG-P-01
SX-E-CE4
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
MSS-ER-90-CAPTO-EX-P-01
MSS-CAPTO-MODULAR-R-90
Turning toolholder – modular
Show variations
MSS-EL-90-CAPTO-EX-P-01
MSS-CAPTO-MODULAR-L-90
Turning toolholder – modular
Show variations
MSS-ER-00-CAPTO-EX-P-01
MSS-CAPTO-MODULAR-R
Turning toolholder – modular
Show variations
MSS-EL-00-CAPTO-EX-P-01
MSS-CAPTO-MODULAR-L
Turning toolholder – modular
Show variations
W-T-MSS-E25R90-2525L-P-02-1
MSS-ISO-MODULAR-R-90
Shank tool – modular
Show variations
W-T-MSS-E25L90-2525L-P-02-1
MSS-ISO-MODULAR-L-90
Shank tool – modular
Show variations
W-T-MSS-E25R00-2525L-P-02-1
MSS-ISO-MODULAR-R
Shank tool – modular
Show variations
W-T-MSS-E25L00-2525L-P-02-1
MSS-ISO-MODULAR-L
Shank tool – modular
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
