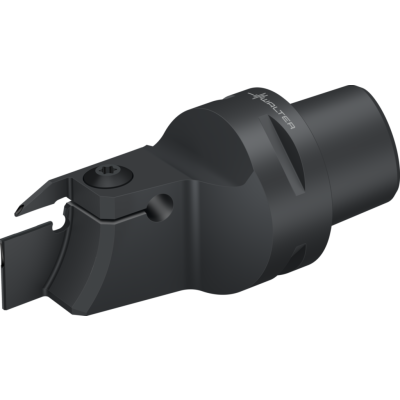

Groove turning holders – Radial grooving
G4011-C3L-2T17DX18-P NEW 2021
EAN-code: 0636785967
Walter CaptoTM
Screw clamping
VAT 0%
463,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Maximum cutting depth
Tmax
17 mm
Maximum parting diameter
D2
52 mm
Indexable insert width
s
2 mm
Connection size code
d1
C3
Maximum projection length
l4
55 mm
Tool designation
Designation
G4011-C3L-2T17DX18-P
Possible indexable inserts
Type
DX18-2E2 ..
Body width
s1
1,6 mm
Functional width
f1
20 mm
