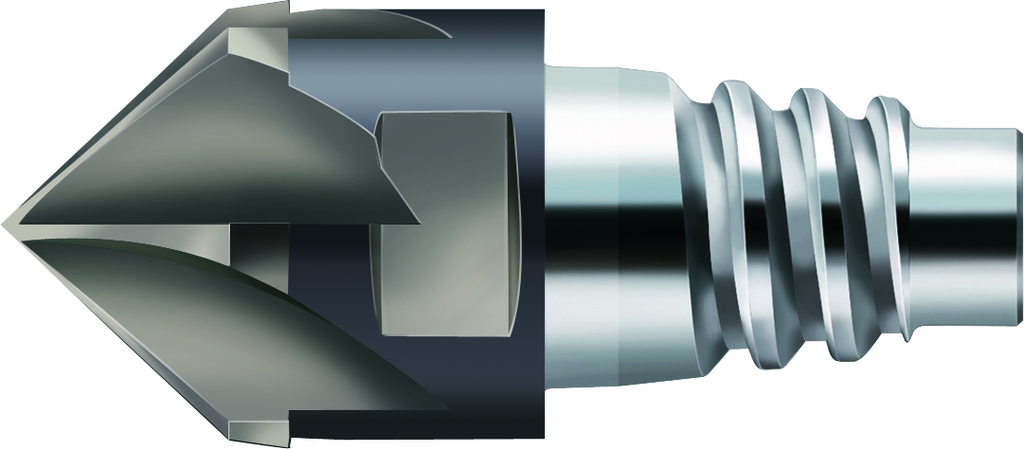

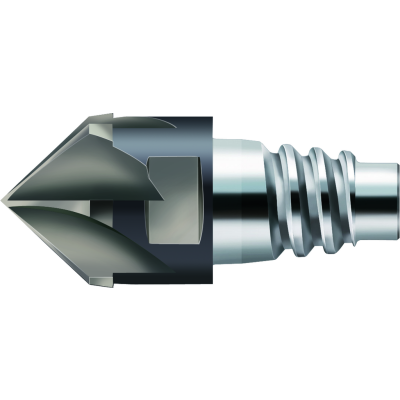

90° solid carbide chamfer mill

H3E58318-E10-10

EAN-code: 4042446200817
M-chamfering-1-Icon M-chamfering-2-Icon
D-M-Z4-8-Icon M-48HRC-Icon M-ohneZentrums-Icon M-Spiralw-0-Icon
90° type chamfer milling cutters
P
M
K
N
S
H
O
VAT 0% 58,60 €
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Wrench size
SW
8 mm
Number of teeth
Z
4
Clearance angle major
α
90 Deg
Overall length
l 1
23,6 mm
Connection diameter
d 1
E10 mm
Maximum projection length
l 4
11,9 mm
Cutting edge diameter
D c
1,5 mm
Cutting edge length
L c
4,25 mm
Maximum cutting diameter
D a
10 mm
Neck diameter
d 2
9,7 mm
Compatible products
Adaptors
Accessories
AK610-VHMB-P-01
AK610-C-B
DIN 6535 HA adaptor
Show variations
W-A-AK610-C-A-P-01
AK610-C-A
DIN 6535 HA adaptor
Show variations
W-A-AK610-C-P-01
AK610-C
DIN 6535 HA adaptor
Show variations
W-A-AK610-B-P-01
AK610-B
DIN 6535 HA adaptor
Show variations
P Mr AK681 C5 E16 P 02
AK681
Walter Capto TM adaptor
Show variations
P MR AK631 H63 E16 P 01
AK631
DIN 69893-1 A adaptor
Show variations
