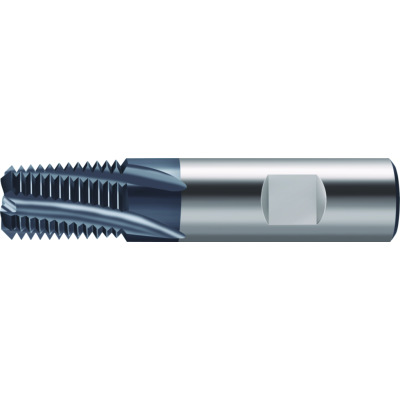

Solid carbide thread milling cutters

H5651106-NPTF1/8

EAN-code: 4042446135447
P-Tr-Tapered-Hole-Icon P-Tr-Tapered-Through-Hole-Icon Tr-Profil-NPTF-Icon
M-48HRC-Icon Tr-Kon-Fraeser-10-Icon
Universal thread milling cutters
P
M
K
N
S
H
O
VAT 0% 365,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Weight
4.3999999999999997E-2 kg
Number of teeth
Z
3
Thread pitch
P
27 TPI
Thread size
D N
NPTF 1/8-27
Cutting edge diameter
D c
7,9 mm
Cutting edge length
L c
11,03 mm
Overall length
l 1
58 mm
Maximum projection length
l 4
22 mm
Connection diameter
d 1
8 mm
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling FS...
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck AB019-H
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor C.
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck AK182.S
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck AK182.H
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter Capto TM hydraulic expansion chuck ISO 26623-1 AK182.C
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck AK182.BT
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor A170...HSK
Show variations
