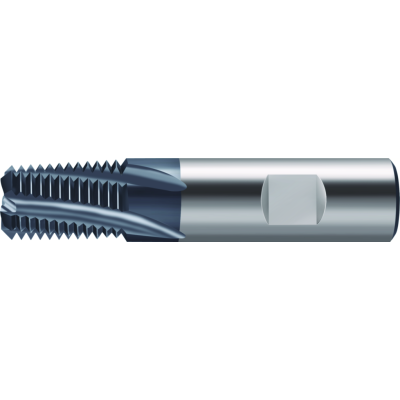

Solid carbide thread milling cutters

H5651106-NPTF1/2-3/4

EAN-code: 4042446135461
P-Tr-Tapered-Hole-Icon P-Tr-Tapered-Through-Hole-Icon Tr-Profil-NPTF-Icon
M-48HRC-Icon Tr-Kon-Fraeser-10-Icon
Universal thread milling cutters
P
M
K
N
S
H
O
VAT 0% 631,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Weight
0.216 kg
Number of teeth
Z
4
Thread pitch
P
14 TPI
Thread size
D N
NPTF 1/2-3/4-14
Cutting edge diameter
D c
15,9 mm
Cutting edge length
L c
19,55 mm
Overall length
l 1
82 mm
Maximum projection length
l 4
34 mm
Connection diameter
d 1
16 mm
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling FS...
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck AB019-H
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor A170M
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor C.
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck AK182.S
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck AK182.H
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter Capto TM hydraulic expansion chuck ISO 26623-1 AK182.C
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck AK182.BT
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor A170...HSK
Show variations
