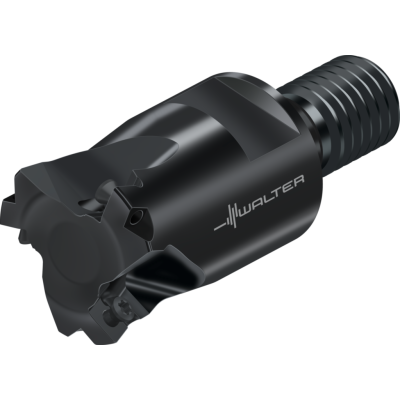

High-feed milling cutter
M4002-032-TC16-03-01,5 NEW 2019
EAN-code: 0993293724
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0%
326,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Number of teeth
Z
3
Weight
WT
0,16 kg
Number of indexable inserts
No. of inserts
3 PCE
Cutting edge diameter
Dc
15,09 mm
Connection diameter
d1
28 mm
Cutting edge length
Lc
1,5 mm
Tool designation
Designation
M4002-032-TC16-03-01,5
Possible indexable inserts
Type
SD .. 09T3 ..; SDMX0904ZDR
Functional length
l4
4 mm
Maximum cutting diameter
Da
32 mm
Maximum radial depth of cut
ar
8,4 mm
