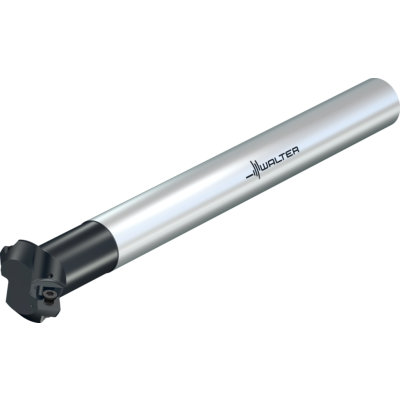

Chamfer milling cutters
M4574-012-A16-02-03
EAN-code: 0764275724
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0%
274,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Maximum cutting diameter
Da
20,3 mm
Cutting edge length
Lc
3,5 mm
Cutting edge diameter
Dc
12 mm
Overall length
l1
160 mm
Maximum projection length
l4
40 mm
Tool designation
Designation
M4574-012-A16-02-03
Possible indexable inserts
Type
SDM . 06T204
Weight
WT
0,23 kg
Number of teeth
Z
2
Number of indexable inserts
No. of inserts
2 PCE
