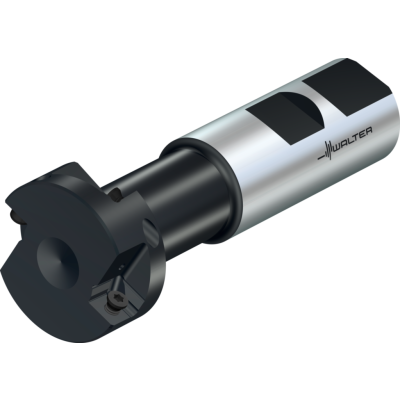

Walter Tools M4575-050-W32-02-21
T-slot milling cutters

EAN-code: 0787285724
M-T-slot-milling-Icon
M-Anstellw-90-Icon M-Nut-DIN650-Icon M-WSP-pos-Icon
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 543,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Number of indexable inserts
Number of WSP
2
Maximum cutting depth
SB
20,75 mm
Cutting edge diameter
Dc
49,5 mm
Connection diameter
d1
32
Body diameter
d2
27 mm
Overall length
l1
122 mm
Maximum projection length
l4
61 mm
Tool designation
Designation
M4575-050-W32-02-21
Possible indexable inserts
Type
SDM . 120408
Weight
0,71 kg
Number of teeth
Z
2
Compatible products
Products
Adaptors
Accessories
Assembly parts
SDGW-A88-PCD-P-01
SDGW-A88
Positive square
Show variations
P
M
K
N
S
H
O
W MI SDMW A57 TTG P 01
SDMW-A57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
SDMT-F57-M4-TTGPVD-P-01
SDMT-F57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
SDMT-D57-M4-TTGPVD-P-01
SDMT-D57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
SDMT-D51-TTGPVD-P-01
SDMT-D51 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
W MI SDHT G88 CU P 01
SDHT-G88 (M4)
Finishing inserts
Show variations
P
M
K
N
S
H
O
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB044-H-P-01
AB044-H
DIN 69893-1 A Weldon adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB044-J-P-01
AB044-J
MAS-BT JIS B 6339 Weldon adaptor
Show variations
AB044-S-P-01
AB044-S
DIN 69871 AD/B Weldon adaptor
Show variations
W-A-391-20-CAPTO-P-01
AB044-C
Weldon shank adaptor
Show variations
W A A170M EX NCT P 01
A170M.0-EX
Adaptor for eccentric sleeve
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
