Products Cutting tools Milling Milling tools Shoulder/slot milling cutters Roughing/finishing cutters Milling cutters Advance MC230 Advance, without corner radius, Z=4, DIN 652 MC230-W-4-B-C, z=4, ~2xDc (l3=3xDc) 4042446314927
Solid carbide shoulder/slot milling cutters

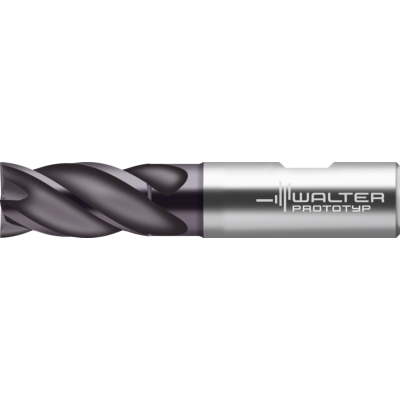

MC230-18.0W4BC-WK40TF NEW 2021

EAN-code: 4042446314927
M-dynamic-milling-Icon M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-slot-milling-Icon
D-M-Z4-Icon M-48HRC-Icon M-Spiralw-35-38-Icon M-Zentrumsschneide-Icon Recon-Icon
Long reach
P
M
K
N
S
H
O
VAT 0% 223,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC230 W 4 B C D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
32 mm
Corner chamfer width
l11
0,15 mm
Cutting edge diameter
Dc
18 mm
Shank diameter
d1
18 mm
Body diameter
d2
17,1 mm
Useable length
l3
42 mm
Overall length
l1
92 mm
Functional length
l4
44 mm
Tool designation
Designation
MC230-18.0W4BC-WK40TF
Number of teeth
Z
4
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER collet chucks
Show variations
W A AK300 SK P 01
AK300.S
DIN 69871 A ER collet chuck
Show variations
W A AK300 BT P 01
AK300.BT
MAS-BT JIS B 6339 ER collet chuck
Show variations
W A AK300M HSK P 01
AK300.7
DIN 69893-1 A ER collet chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
