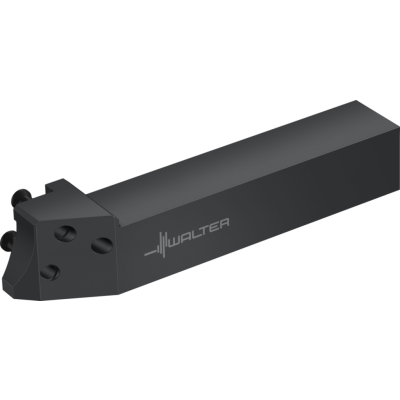

Walter Tools MSS-E25L00-2525L
Shank tool – modular

EAN-code: 0574362935
T-Ex-Grooving-Icon T-Ex-Parting-Icon T-Ex-Turning-Icon
Screw clamping
VAT 0% 168,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-MSSL-E-00-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
b
25 mm
Shank height
h = h1
25 mm
Overall length
l1
145,5 mm
Tool designation
Designation
MSS-E25L00-2525L
Module size
E25
Functional width
f
25,5 mm
Compatible products
Adaptors
Assembly parts
W A A2121 P VDI P 01
A2121-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2121 C P P 01
A2121-CAPTO-P
Walter CaptoTM – Radial adaptor
Show variations
W A A2120 VDI25 P P 01
A2120-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2120 C P P 01
A2120-CAPTO-P
Walter CaptoTM – Axial adaptor
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
