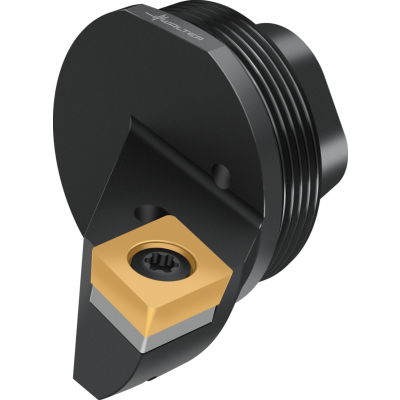

Products Cutting tools Turning Vibration-damped boring bars QuadFit exchangeable head, positive CC.. SCLCR 0560312914
Replaceable head – screw clamping

Q40-SCLCR-27032-09 NEW 2019

EAN-code: 0560312914
T-In-xCLx-Icon
T-WSP-CC-Icon
QuadFit For Accure·tec boring bars
VAT 0% 417,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-SCLC-QUADFIT-IN-D-01
Enlarge
Description Symbol Value
Possible indexable inserts
Type
CC .. 09T3 ..
Minimum diameter
Dmin
5 mm
Insert seat size
9
Tool designation
Designation
Q40-SCLCR-27032-09
Projection length
l4
32 mm
Inclination angle
λs
-2 °
Orthogonal rake angle
γ
0 °
Functional width
f
27 mm
Compatible products
Products
Adaptors
Assembly parts
CCGT-R-FX4-ANTHRA-P-01
CCGT-R-FX4
Positive rhombic 80°
Show variations
CCGT-L-FX4-ANTHRA-P-01
CCGT-L-FX4
Positive rhombic 80°
Show variations
CCGT-FL2-TTG2-P-01
CCGT-FL2
Positive rhombic 80°
Show variations
CCMT-MW4-TTG2-WIPER-P-01
CCMT-MW4
Positive rhombic 80°
Show variations
CCMT-FW4-TTG2-WIPER-P-01
CCMT-FW4
Positive rhombic 80°
Show variations
CCMT MP6 TTG2 P 01
CCMT-MP6
Positive rhombic 80°
Show variations
W T CCGT FP2 CU P 01
CCGT-FP2
Positive rhombic 80°
Show variations
CCMT-RP4-TTG2-P-01
CCMT-RP4
Positive rhombic 80°
Show variations
W T CCMT RM4 SILVER P 01
CCMT-RM4
Positive rhombic 80°
Show variations
W T CCMT RK4 SILVER P 01
CCMT-RK4
Positive rhombic 80°
Show variations
CCMT-MP4-TTG2-P-01
CCMT-MP4
Positive rhombic 80°
Show variations
W T CCMT MM4 SILVER P 01
CCMT-MM4
Positive rhombic 80°
Show variations
W T CCMT MK4 SILVER P 01
CCMT-MK4
Positive rhombic 80°
Show variations
CCMT-FP4-TTG2-P-01
CCMT-FP4
Positive rhombic 80°
Show variations
W T CCMT FM4 SILVER P 01
CCMT-FM4
Positive rhombic 80°
Show variations
CCGW-TM-2-WTZ-P-01
CCGW_TM-2
CBN – Positive rhombic 80°
Show variations
CCGW-TM-2-CBNBR-P-01
CCGW_TS-2
CBN – Positive rhombic 80°
Show variations
W T CCGW 1 PCD P 01
CCGW_FS-1
PCD – Positive rhombic 80°
Show variations
W T CCGW TM 2 CBN P 01
CCGW_EM-2
CBN – Positive rhombic 80°
Show variations
W-T-CCGT-M1-PCD-CHIPBREAKER-P-01
CCGT_FS-M1
PCD – Positive rhombic 80°
Show variations
CCGT-MP4-TTG2-P-01
CCGT-MP4
Positive rhombic 80°
Show variations
W T CCGT MM4 SILVER P 01
CCGT-MM4
Positive rhombic 80°
Show variations
W T CCGT MK4 SILVER P 01
CCGT-MK4
Positive rhombic 80°
Show variations
W T CCGT 1 PCD P 01
CCGT_FS-1
PCD – Positive rhombic 80°
Show variations
W-T-CCGT-FN2-ANTHRA-POL-P-02-1
CCGT-FN2
Positive rhombic 80°
Show variations
W-T-CCGT-MN2-ANTHRA-POL-P-02-1
CCGT-MN2
Positive rhombic 80°
Show variations
W T CCGT FM2 SILVER P 01
CCGT-FM2
Positive rhombic 80°
Show variations
A2100-QUADFIT-INNEN-P-01
A2100-QUADFIT-INNEN
Cylindrical shank - QuadFit
Show variations
W A A3000 HSK T P 01
A3000-HSK-T-QUADFIT-INNEN
HSK-T adaptor – vibration damped
Show variations
W A A3000 CAPTO P 01
A3000-CAPTO-QUADFIT-INNEN
Walter CaptoTM Adaptor – vibration damped
Show variations
W A A3000 Z P 01
A3000-QUADFIT-INNEN-RUND
Cylinder shaft adaptor – vibration damped
Show variations
W A A3000 QUADFIT F P 01
A3000-QUADFIT-INNEN
Cylinder shaft adaptor – vibration damped
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
