Products Cutting tools Turning Vibration-damped boring bars QuadFit exchangeable head, positive VB.. /VC.. SVUBL 0560347914
Replaceable head – screw clamping

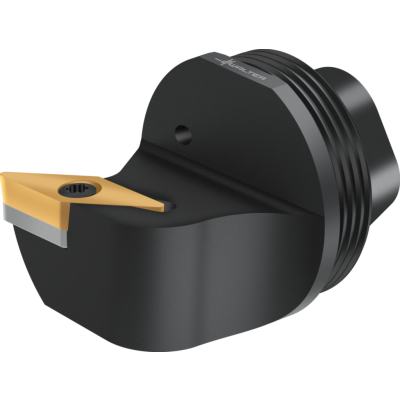

Q40-SVUBL-27032-16 NEW 2019

EAN-code: 0560347914
T-In-PVUB-Icon
T-WSP-VB-Icon T-WSP-VC-Icon
QuadFit For Accure·tec boring bars
VAT 0% 417,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
SVUBL-QUADFIT-IN-D-01
Enlarge
Description Symbol Value
Tool designation
Designation
Q40-SVUBL-27032-16
Projection length
l4
32 mm
Inclination angle
λs
-3 °
Orthogonal rake angle
γ
0 °
Possible indexable inserts
Type
VB .. 1604 ..
Minimum diameter
Dmin
5 mm
Insert seat size
16
Functional width
f
26,9 mm
Compatible products
Products
Adaptors
Assembly parts
VCGT-R-FX4-ANTHRA-P-01
VCGT-R-FX4
Positive rhombic 35°
Show variations
VCGT-L-FX4-ANTHRA-P-01
VCGT-L-FX4
Positive rhombic 35°
Show variations
VBMT MP6 TTG2 P 01
VBMT-MP6
Positive rhombic 35°
Show variations
W T VCMT MM4 SILVER P 01
VCMT-MM4
Positive rhombic 35°
Show variations
VCMT-MP4-TTG2-P-01
VCMT-MP4
Positive rhombic 35°
Show variations
W T VCGT FP2 CU P 01
VCGT-FP2
Positive rhombic 35°
Show variations
VCMT-RP4-TTG2-P-01
VCMT-RP4
Positive rhombic 35°
Show variations
W T VCMT RM4 SILVER P 01
VCMT-RM4
Positive rhombic 35°
Show variations
W T VCMT RK4 SILVER P 01
VCMT-RK4
Positive rhombic 35°
Show variations
VCMT-FP4-TTG2-P-01
VCMT-FP4
Positive rhombic 35°
Show variations
W T VCMT FM4 SILVER P 01
VCMT-FM4
Positive rhombic 35°
Show variations
VCGW-TM-2-WTZ-P-01
VCGW_TS-2
CBN – Positive rhombic 35°
Show variations
VCGW-TM-2-CBN-P-01
VCGW_TM-2
CBN – Positive rhombic 35°
Show variations
W T VCGW1 PCD P 01
VCGW_FS-1
PCD – Positive rhombic 35°
Show variations
VCGW-TM-2-CBN-P-01
VCGW_EM-2
CBN – Positive rhombic 35°
Show variations
W T VCGT 1 PCD P 01
VCGT_FS-1
PCD – Positive rhombic 35°
Show variations
W-T-VCGT-MM4-SILVER-P-01
VCGT-MM4
Positive rhombic 35°
Show variations
W-T-VCGT-MN2-ANTHRA-POL-P-02-1
VCGT-MN2
Positive rhombic 35°
Show variations
W T VCGT FM2 SILVER P 01
VCGT-FM2
Positive rhombic 35°
Show variations
W-T-VCGT-FN2-ANTHRA-POL-P-02-1
VCGT-FN2
Positive rhombic 35°
Show variations
VBMT-MP4-TTG2-P-01
VBMT-MP4
Positive rhombic 35°
Show variations
W-T-VBMT-MM4-SILVER-P-01
VBMT-MM4
Positive rhombic 35°
Show variations
W T VBMT MK4 SILVER P 01
VBMT-MK4
Positive rhombic 35°
Show variations
VCGW-TM-2-CBN-P-01
VBGW_TS-2
CBN – Positive rhombic 35°
Show variations
VCGW-TM-2-WTZ-P-01
VBGW_TM-2
CBN – Positive rhombic 35°
Show variations
A2100-QUADFIT-INNEN-P-01
A2100-QUADFIT-INNEN
Cylindrical shank - QuadFit
Show variations
W A A3000 HSK T P 01
A3000-HSK-T-QUADFIT-INNEN
HSK-T adaptor – vibration damped
Show variations
W A A3000 CAPTO P 01
A3000-CAPTO-QUADFIT-INNEN
Walter CaptoTM Adaptor – vibration damped
Show variations
W A A3000 Z P 01
A3000-QUADFIT-INNEN-RUND
Cylinder shaft adaptor – vibration damped
Show variations
W A A3000 QUADFIT F P 01
A3000-QUADFIT-INNEN
Cylinder shaft adaptor – vibration damped
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
