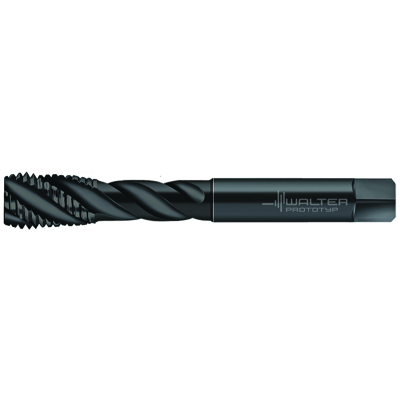

HSS-E (-PM) machine taps

TC142-G1/8-L0-WY80FC

EAN-code: 4042446267339
P-Tr-Blind-Holes-Icon Tr-Profil-G-BSP-DIN-Icon
TR-350-100HB-Icon-inch Tr-1200-350-Nmm2-Icon Tr-3xDN-Icon Tr-Anschnitt-C-2-3-Icon Tr-Drallw-Bohren-50-Icon
WY80FC: Best chip control WW60RB: Best wear resistance
P
M
K
N
S
H
O
VAT 0% 46,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P TR PDUR 20569 ZUE D 01
Enlarge
Description Symbol Value
Connection diameter
d1
7 mm
Thread size
DN
9,728
Tool designation
Designation
TC142-G1/8-L0-WY80FC
Clamping width
5,5 mm
usable length
l3
67 mm
Threads per inch
28
Driving square length
l9
8 mm
Thread length
Lc
12 mm
Functional length
l1
9 mm
Thread size
DN-P
G 1/8-28
Number of grooves
N
3
