Products Cutting tools Threading Thread milling Sol. carb. thread milling cutters w/o countersink UNC-thread With internal cooling 2xD TC611-UNC-W1 4042446257484

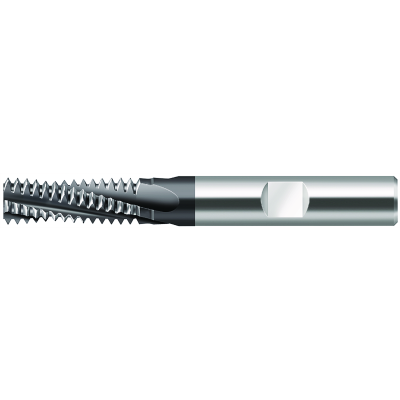

Solid carbide thread milling cutters

TC611-UNC1/4-W1-WJ30RC

EAN-code: 4042446257484
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-UNC-Icon
M-48HRC-Icon Recon-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-20-Icon Tr-IKA-Icon
Universal thread milling cutters
P
M
K
N
S
H
O
VAT 0% 244,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P TR TC611 W1 D 01
Enlarge
Description Symbol Value
Connection diameter
d1
6 mm
Threads per inch
20
Body diameter
Dc
4,8
Tool designation
Designation
TC611-UNC1/4-W1-WJ30RC
Functional length
l4
21 mm
Overall length
l1
57 mm
Thread size
DN
UNC 1/4-20
Number of teeth
Z
3
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
