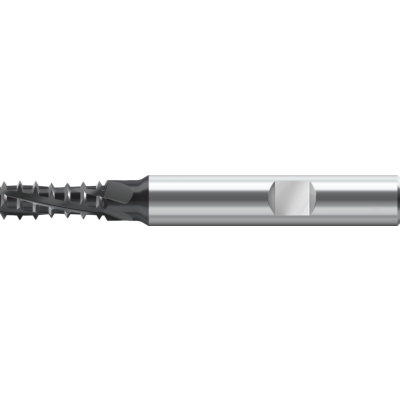

Multiple-row thread milling cutters
TC620-UNF1/4-W1D-WB10TJ NEW 2022
EAN-code: 4042446322380
Universal multiple-row thread milling cutters
For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
VAT 0%
246,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Number of teeth
Z
4
Connection diameter
d1
6 mm
Tool designation
Designation
TC620-UNF1/4-W1D-WB10TJ
Overall length
l1
57 mm
Thread size
DN
UNF 1/4-28
Body diameter
Dc
5,1
maximum overhang
l4
21 mm
Functional length
l21
1,81 mm
Thread pitch
Threads per inch
28
Max. depth of cut
Lc
12,7 mm
Compatible products
Adaptors
