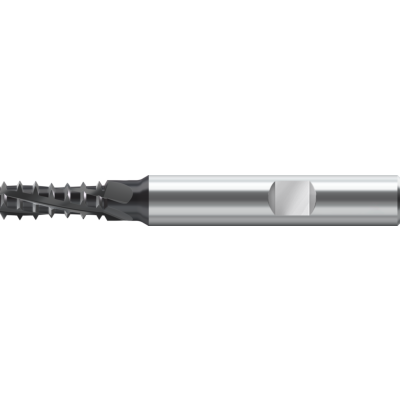

Multiple-row thread milling cutters
TC620-UNF5/16-W5D-WB10TJ NEW 2022
EAN-code: 4042446322397
Universal multiple-row thread milling cutters
For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
VAT 0%
296,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Number of teeth
Z
4
Connection diameter
d1
8 mm
Tool designation
Designation
TC620-UNF5/16-W5D-WB10TJ
Overall length
l1
63 mm
Thread size
DN
UNF 5/16-24
Body diameter
Dc
6,4
maximum overhang
l4
27 mm
Functional length
l21
2,12 mm
Thread pitch
Threads per inch
24
Max. depth of cut
Lc
15,9 mm
