Walter Tools
TC620-UNF3/8-W5D-WB10TJ

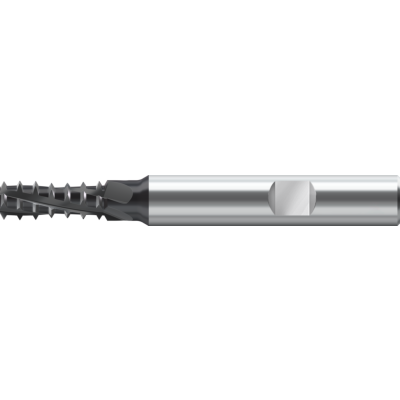

Multiple-row thread milling cutters
NEW 2022
EAN-code: 4042446322403
Universal multiple-row thread milling cutters
For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
VAT 0%
300,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Maximum cutting depth
Lc
19,1 mm
Cutting edge diameter
Dc
7,9 mm
Connection diameter
d1
8
Thread size
DN
UNF 3/8-24
Overall length
l1
67 mm
Maximum overhang
l4
31 mm
Tool designation
Designation
TC620-UNF3/8-W5D-WB10TJ
Functional length
l21
2,12 mm
Thread pitch
Gear per inch
24
Number of teeth
Z
5
Compatible products
Adaptors
