Products Cutting tools Threading Thread milling Sol. carb. thread milling cutters w/o countersink UNC-thread With internal cooling 3xD Solid carbide orbital thread mills TC630 4042446323189

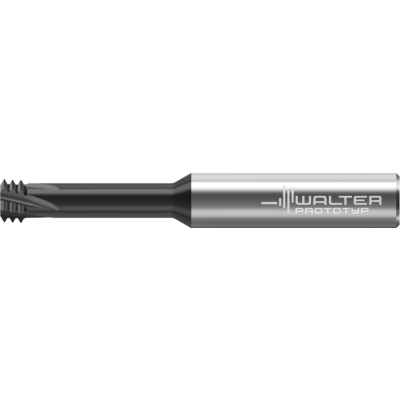

Solid carbide orbital thread mills

TC630-UNC3/8-A5F-WB10TJ NEW 2021

EAN-code: 4042446323189
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-UNC-Icon
DeVibe-Icon M-48HRC-Icon Tr-3xDN-Icon Tr-Drallw-Fraesen-15-Icon Tr-IKA-Icon
Universal orbital thread milling cutters Best running smoothness due to Walter DeVibe technology
P
M
K
N
S
H
O
VAT 0% 290,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P TR TC630 M A1 D 01
Enlarge
Description Symbol Value
Number of teeth
Z
5
Cutting edge diameter
Dc
7,55 mm
Connection diameter
d1
8 mm
Cutting edge length
Lc
4,76 mm
Tool designation
Designation
TC630-UNC3/8-A5F-WB10TJ
Overall length
l1
68 mm
usable length
l3
29,37 mm
maximum overhang
l4
32 mm
Thread size
DN-P
UNC 3/8-16
Threads per inch
16
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
