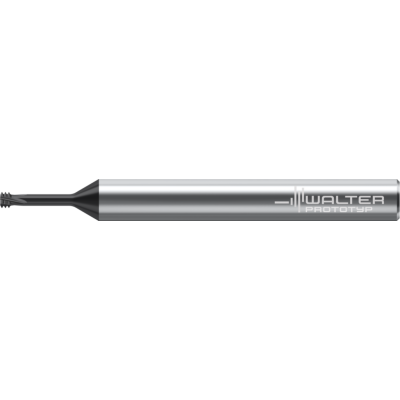

Solid carbide orbital thread mills
TC630-UNC8-A5F-WB10TJ NEW 2024
EAN-code: 4063465861483
Universal orbital thread milling cutters
Best running smoothness due to Walter DeVibe technology
P
M
K
N
S
H
O
VAT 0%
205,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Number of teeth
Z
4
Cutting edge diameter
Dc
3,25 mm
Connection diameter
d1
6 mm
Cutting edge length
Lc
2,38 mm
Tool designation
Designation
TC630-UNC8-A5F-WB10TJ
Overall length
l1
57 mm
usable length
l3
13,687 mm
maximum overhang
l4
21 mm
Thread size
DN-P
UNC #8-32
Threads per inch
32
Compatible products
Adaptors
