Products Cutting tools Threading Thread milling Solid carbide drill thread milling cutters UNF-thread TC645 Supreme TC645-UNF-A1D TC645-UNF3/4-A1D-WB10TJ

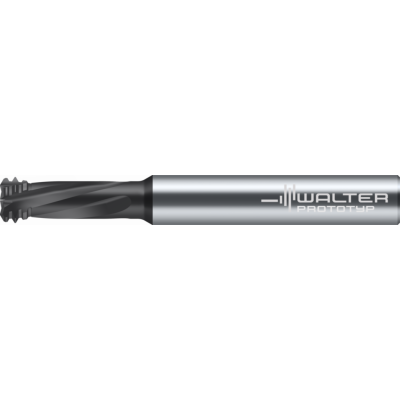

Orbital drill thread milling cutter

TC645-UNF3/4-A1D-WB10TJ NEW 2025

EAN-code: 4063466694875
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-chamfer-120-Icon Tr-Profil-UNF-Icon
D-Tr-LH-rotation-Icon M-48HRC-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-20-LH-Icon Tr-IKA-Icon
Chamfer, core hole and thread in one operation Orbital drill thread milling cutters for universal application
P
M
K
N
S
H
O
VAT 0% 648,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC645-M-A1D-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
15 mm
Connection diameter
d1
16
Thread size
DN
UNF 3/4-16
Usable length
l3
38,1 mm
Overall length
l1
92 mm
Maximum overhang
l4
44 mm
Tool designation
Designation
TC645-UNF3/4-A1D-WB10TJ
Non-usable thread depth
Lc2
2,69 mm
Threads per inch
Gear per inch
16
Number of teeth
Z
4
