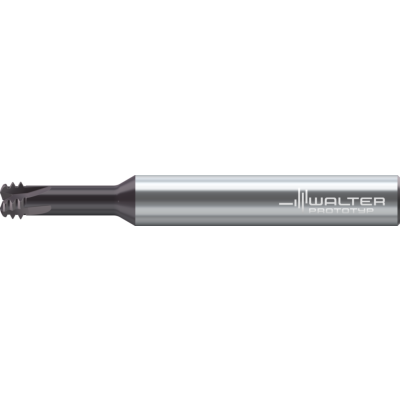

Orbital drill thread milling cutter
TC685-M3-A0E-WB10RC NEW 2018
EAN-code: 4042446297800
Chamfer, core hole and thread in one operation
Orbital drill thread milling cutters for hardened materials
P
M
K
N
S
H
O
VAT 0%
123,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Cutting edge diameter
Dc
2,35 mm
maximum overhang
l4
14 mm
Overall length
l1
5 mm
usable length
l3
7,5 mm
Thread size
DN
M 3
Non-usable thread depth
Lc2
0,8 mm
Connection diameter
d1
6 mm
Tool designation
Designation
TC685-M3-A0E-WB10RC
Thread pitch
P
0,5 mm
Number of teeth
Z
4
Compatible products
Adaptors
