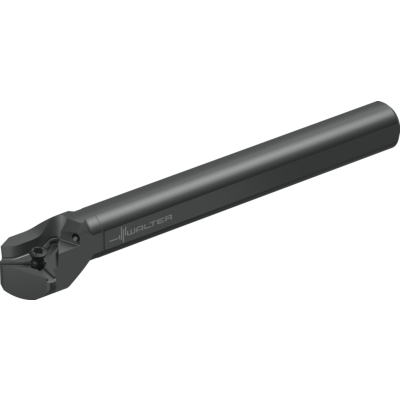

Boring bar – Copy turning system
W1210-16RR-WL17 NEW 2023
EAN-code: 4063464967940
Double internal coolant supply
With WL form-fit system
VAT 0%
169,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Boring bar diameter d 1
d1
16 mm
Minimum hole diameter
Dmin
22 mm
Orthogonal rake angle
γ
-2,4 °
Shank height
h
15 mm
Inclination angle
λs
-7,6 °
Overall length
l1
207 mm
Overall length
l20
207 mm
Maximum projection length
l4
23 mm
Tool designation
Designation
W1210-16RR-WL17
Insert seat size
Plate seat size
17
Possible indexable inserts
Type
WL17..
Functional width
f
13 mm
X 1
5 mm
