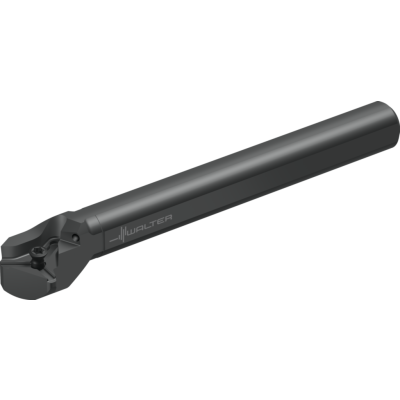

Boring bar – Copy turning system
W1210-20SR-WL17 NEW 2023
EAN-code: 4063464968183
Double internal coolant supply
With WL form-fit system
VAT 0%
207,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Boring bar diameter d 1
d1
20 mm
Minimum hole diameter
Dmin
26 mm
Orthogonal rake angle
γ
-2,4 °
Shank height
h
18 mm
Inclination angle
λs
-7,6 °
Overall length
l1
257 mm
Overall length
l20
257 mm
Maximum projection length
l4
26 mm
Tool designation
Designation
W1210-20SR-WL17
Insert seat size
Plate seat size
17
Possible indexable inserts
Type
WL17..
Functional width
f
15 mm
X 1
5 mm
