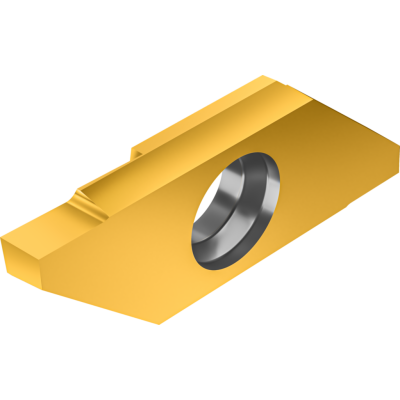

Walter Tools WT26-R100N00-UA8 WSM23X
Grooving and recessing – cutting inserts

NEW 2024
EAN-code: 4063465534837
T-Ex-Grooving-Icon T-EX-Parting-WT26-Icon T-EX-Turning-WT26-Icon
P
M
K
N
S
H
O
VAT 0% 40,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-WT-L-N-UA8-D-01
Enlarge
Description Symbol Value
Cutting width
s
1 mm
Depth of cut
ap
0.1–1.5 mm
Maximum cutting depth
Tmax
6,3 mm
Feed per revolution
f
0.02–0.14 mm
Cutting edge length
l
25 mm
Designation
WT26-R100N00-UA8 WSM23X
Corner radius
r
0,05 mm
Tolerance cutting width
STol
±0.02
Length tolerance
lTol
±0.03
