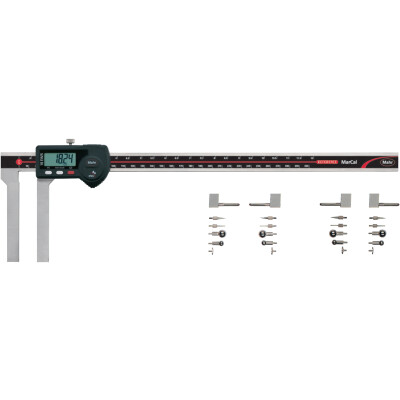

Digital Caliper set with data transfer, IP65

4112722KAL

EAN-code: 4112722KAL-Mahr

FUNCTIONS
• ON/OFF
• AUTO-ON / OFF
• RESET (set display to zero)
• PRESET (for entering a numerical value)
• mm/inch
• LOCK function (key lock)
• DATA (data transmission via connection cable)
Application:
• For inner and outer measurements of recesses, grooves, etc.
• Individual adjustment by means of measuring anvils with M2.5 thread

VAT 0% 963,00 €

You need to log in before purchasing. Request credentials here.

Ask about this product

Description

FEATURES
• High contrast digital display
• Locking screw above
• Immediate measurements due to the Reference System
• Excellent resistance against dust, coolants and lubricants
• Dirt wipers are integrated in the slide
• Slide and beam made of hardened stainless steel
• Measuring faces for outside measurement
• Thread M2.5 measuring jaws to accommodate measuring anvils for internal and external measurements
• SoftwareMarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS232 interface)
• Digit height: 10 mm (300 mm), 12.5 mm (500mm)
• Data interface: USB, Opto RS232C, Digimatic, wireless
• Energy supply: Battery life approx. 3 years
• IP protection category: IP 65
• Package contains: battery, case, instruction manual, anvils
