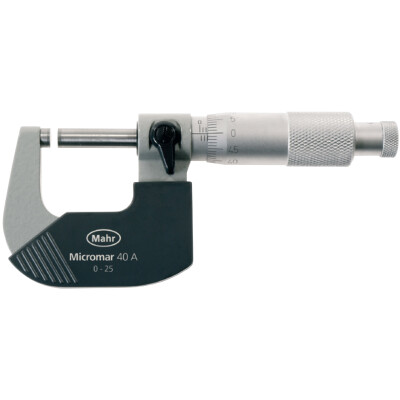

Analog outside micrometer

4134003DKS

EAN-code: 4134003DKS-Mahr
VAT 0% 183,75 €
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Description

FEATURES
• Operating and display units with satin chrome finish
• Hard lacquered steel frame
• Spindle and anvil made of hardened steel, carbide-tipped
• Heat insulators
• Rapid drive with integrated ratchet
• Locking device
• Package contains: setting standard (from measuring range of 25 – 50 mm), instruction manual, case

Technical details
Description Symbol Value
Error limit
0,05 mm
Weight
0.938 kg
Measuring range
75 - 100 mm
IP protection category
None
Graduation value
0,01 mm
Error limit
5 μm
Spindle thread
Pitch
0,5 mm
Standard
DIN 863– 1
Calibration certificate
DAkkS

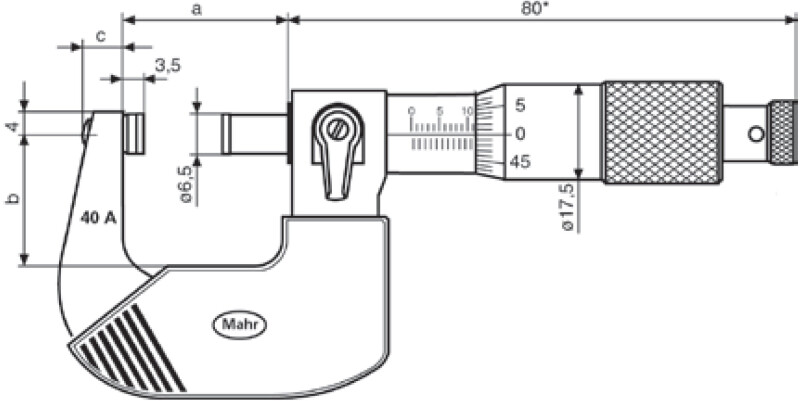

Frame width
a
106 mm
Frame depth
b
58,5 mm
Jaw width
c
13 mm
