Products Cutting tools Holemaking Solid drilling Solid carbide drills With internal cooling 20xDc DC160 Advance 4031132429342

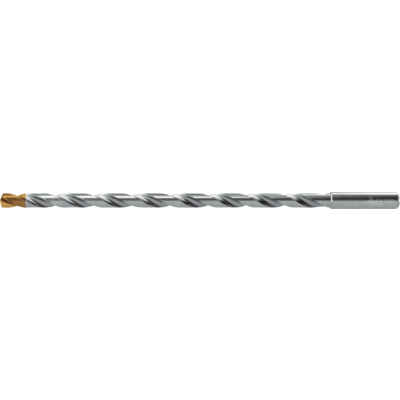

Solid carbide drills with coolant-through

DC160-20-05.500A1-WJ30EU NEW 2019

EAN-code: 4031132429342
D-drilling-blind-hole-solid-Icon D-drilling-cross-hole-Icon D-drilling-inclination-exit-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-20xDc-Icon D-IK-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 294,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
T DR DC160 A 1 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
5,5 mm
Overall length
l1
17 mm
Drilling depth
Lc
123 mm
Shank length
l5
36 mm
Flute length
l2
132 mm
Shank diameter
d1
6 mm
Tool designation
Designation
DC160-20-05.500A1-WJ30EU
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
